nuclear_chart.C

Explore nuclear structure data on a nuclear chart

This macro returns two examples of how to plot a nice nuclear chart with nuclear structure data:

  • deformation of the even-even nuclei in terms of B(E2)/A in Weisskopf unit.

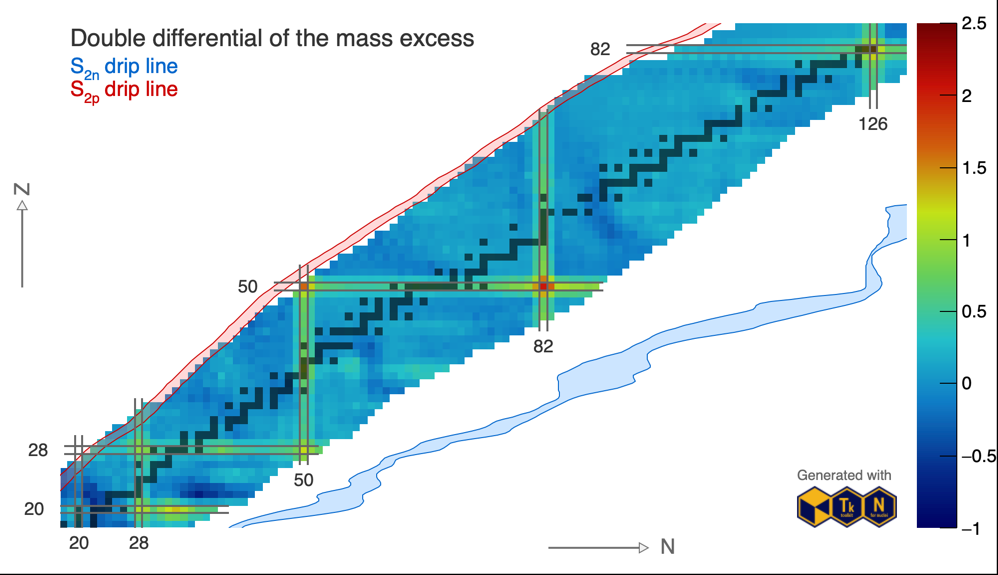

  • double differential of mass excess

Start tkn-root, compile and execute this macro :

tkn-root
_____ _ _ | Documentation: https://tkn.in2p3.fr/
(_ _) | \ | | | Source: https://gitlab.in2p3.fr/tkn/tkn-lib
| |_ _| \| | |
| | |/ / | | Version 2.2
| | <| |\ | |
|_|_|\_\_| \_| | Database: TkN_ensdf_250804_xundl_250101_v2.2.db
tkn [0] .L nuclear_chart.C
tkn [1] plot_nuclear_chart_deformation()

It produces the following plot:

tkn [2] plot_nuclear_chart_deformation()

Source code :

// -----------------------------------------------------------------------------
// Nuclear chart visualizations with drip-line envelopes and stable nuclei overlays.
// -----------------------------------------------------------------------------
#include "tkmanager.h"
#include "tkn_root_macros.h"
#include <TArrow.h>
#include <TCanvas.h>
#include <TColor.h>
#include <TGraph.h>
#include <TGraphAsymmErrors.h>
#include <TH2.h>
#include <TImage.h>
#include <TLine.h>
#include <TLatex.h>
#include <TPad.h>
#include <TPaletteAxis.h>
#include <TSpline.h>
#include <TStyle.h>
#include <TPolyLine.h>
#include <TBox.h>
#include <cmath>
#include <algorithm>
#include <map>
#include <numeric> // std::iota
using namespace tkn;
// ------------------------- Config / Types ------------------------------------
enum class EvenEven { No, Yes };
struct ChartWindow { double xmin, xmax, ymin, ymax; };
struct MagicLayout {
// “Magic numbers” and label anchor ranges
static constexpr int Nm[7] = {2 , 8 , 20 , 28 , 50 , 82 , 126 };
static constexpr double NmMin[7]= {0. , 1. , 12., 18., 46., 93. , 98. };
static constexpr double NmMax[7]= {10., 22., 40., 52., 90., 140., 126.*3};
static constexpr double ZmMin[7]= {0.2, 0.2, 6. , 10., 26., 44. , 74.};
static constexpr double ZmMax[7]= {9. , 17., 30., 35., 53., 74. , 95.};
};
// ---------------------------- Helpers ----------------------------------------
namespace {
TH2D* MakeHist(const char* name, int NMax, int ZMax, EvenEven mode) {
if (mode == EvenEven::Yes) {
// step=2 binning: edges at -1,1,3,... (centers on even integers)
return new TH2D(name,";N;Z",
(NMax+2)/2, -1, NMax+1,
(ZMax+2)/2, -1, ZMax+1);
} else {
// unit binning centered on integers
return new TH2D(name,";N;Z",
NMax+1, -0.5, NMax+0.5,
ZMax+1, -0.5, ZMax+0.5);
}
}
void HideEmptyBins(TH2* h, double sentinel=-1e8) {
for (int ix=1; ix<=h->GetNbinsX(); ++ix)
for (int iy=1; iy<=h->GetNbinsY(); ++iy)
if (h->GetBinContent(ix,iy)==0.0) h->SetBinContent(ix,iy, sentinel);
}
void ApplyCleanStyle(TH2* h, const ChartWindow& w, double zmin, double zmax) {
gStyle->SetOptStat(0);
gStyle->SetNumberContours(255);
gStyle->SetPalette(kRainBow);
h->SetMinimum(zmin);
h->SetMaximum(zmax);
h->GetXaxis()->SetRangeUser(w.xmin, w.xmax);
h->GetYaxis()->SetRangeUser(w.ymin, w.ymax);
h->SetTitle("");
h->GetXaxis()->SetLabelSize(0);
h->GetXaxis()->SetTitleSize(0);
h->GetXaxis()->SetTickLength(0);
h->GetXaxis()->SetAxisColor(0);
h->GetYaxis()->SetLabelSize(0);
h->GetYaxis()->SetTitleSize(0);
h->GetYaxis()->SetTickLength(0);
h->GetYaxis()->SetAxisColor(0);
gPad->SetFrameLineColor(0);
}
void PlacePalette(TH2* h, double x1=0.92,double x2=0.96,double y1=0.12,double y2=0.90)
{
gPad->Update();
// White masks in pad coordinates (frame) to hide any drawings beyond axes.
// Right of Uxmax
auto mask = new TBox(gPad->GetUxmax(), gPad->GetY1(), gPad->GetX2(), gPad->GetY2());
mask->SetFillColor(kWhite); mask->SetLineColor(kWhite); mask->Draw("same");
// Below Uymin
mask = new TBox(gPad->GetX1(), gPad->GetY1(), gPad->GetX2(), gPad->GetUymin());
mask->SetFillColor(kWhite); mask->SetLineColor(kWhite); mask->Draw("same");
// Left of Uxmin
mask = new TBox(gPad->GetX1(), gPad->GetY1(), gPad->GetUxmin(), gPad->GetY2());
mask->SetFillColor(kWhite); mask->SetLineColor(kWhite); mask->Draw("same");
// Above Uymax
mask = new TBox(gPad->GetX1(), gPad->GetUymax(), gPad->GetX2(), gPad->GetY2());
mask->SetFillColor(kWhite); mask->SetLineColor(kWhite); mask->Draw("same");
// Reposition palette and bring it to front
if (auto pal=(TPaletteAxis*)h->GetListOfFunctions()->FindObject("palette")) {
pal->SetX1NDC(x1); pal->SetX2NDC(x2);
pal->SetY1NDC(y1); pal->SetY2NDC(y2);
pal->SetLineColor(0);
pal->SetLabelSize(0.035);
pal->SetTitleSize(0.040);
pal->SetTickLength(0.02);
pal->Draw();
}
gPad->Modified(); gPad->Update();
}
void DrawMagicGridAndLabels(EvenEven mode,
int lineColor=kGray+2, int lineStyle=1, float lineWidth=2.f,
int textColor=kGray+3, double textSize=0.035)
{
if (!gPad) return;
gPad->Modified(); gPad->Update();
const double nxmin = gPad->GetUxmin();
const double nxmax = gPad->GetUxmax();
const double nymin = gPad->GetUymin();
const double nymax = gPad->GetUymax();
const double offset = (mode==EvenEven::Yes ? 1.0 : 0.5);
const double dx = (mode==EvenEven::Yes ? 0.045 : 0.03) * (nxmax - nxmin);
const double dy = (mode==EvenEven::Yes ? 0.045 : 0.03) * (nymax - nymin);
TLatex lab; lab.SetTextFont(42); lab.SetTextColor(textColor); lab.SetTextSize(textSize);
// Vertical pairs at N = m ± offset
for (int i=0; i<7; ++i) {
const int N = MagicLayout::Nm[i];
const double z1 = std::max(nymin, MagicLayout::ZmMin[i]);
const double z2 = std::min(nymax, MagicLayout::ZmMax[i]);
if (N >= nxmin + offset && N <= nxmax - offset && z1 < nymax) {
for (double s : {-offset, +offset}) {
auto L = new TLine(N + s, z1, N + s, z2);
L->SetLineColor(lineColor); L->SetLineStyle(lineStyle); L->SetLineWidth(lineWidth);
L->Draw();
}
lab.SetTextAlign(22);
lab.DrawLatex(N, z1 - dy, Form("%d", N));
}
}
// Horizontal pairs at Z = m ± offset
for (int i=0; i<7; ++i) {
const int Z = MagicLayout::Nm[i];
const double n1 = std::max(nxmin, MagicLayout::NmMin[i]);
const double n2 = std::min(nxmax, MagicLayout::NmMax[i]);
if (Z >= nymin + offset && Z <= nymax - offset && n1 < nxmax) {
for (double s : {-offset, +offset}) {
auto L = new TLine(n1, Z + s, n2, Z + s);
L->SetLineColor(lineColor); L->SetLineStyle(lineStyle); L->SetLineWidth(lineWidth);
L->Draw("same");
}
lab.SetTextAlign(22);
lab.DrawLatex(n1 - dx, Z, Form("%d", Z));
}
}
}
void DrawAxisHints() {
TArrow arrow; arrow.SetLineColorAlpha(kGray+2, 0.9); arrow.SetLineWidth(2);
auto arr = arrow.DrawArrow(0.55, 0.045, 0.65, 0.045, 0.012, "|>"); arr->SetNDC();
TLatex tx; tx.SetTextFont(42); tx.SetTextSize(0.04); tx.SetTextColor(kGray+2); tx.SetTextAlign(22);
tx.DrawLatexNDC(0.67, 0.05, "N");
arr = arrow.DrawArrow(0.022, 0.5, 0.022, 0.65, 0.012, "|>"); arr->SetNDC();
TLatex tz; tz.SetTextFont(42); tz.SetTextSize(0.04); tz.SetTextColor(kGray+2); tz.SetTextAlign(22);
tz.SetTextAngle(90);
tz.DrawLatexNDC(0.02, 0.67, "Z");
tz.SetTextAngle(0);
}
void DrawTitleTopLeft(const char* txt) {
const double xL=gPad->GetLeftMargin(), yT=1.0-gPad->GetTopMargin();
TLatex t; t.SetNDC(true); t.SetTextFont(42); t.SetTextColor(kGray+3); t.SetTextSize(0.045); t.SetTextAlign(13);
t.DrawLatex(xL+0.010, yT-0.010, txt);
}
static void DrawSmoothBandX(const std::vector<double>& x, // Nmid
const std::vector<double>& y, // Z
const std::vector<double>& ex, // half-width in N
Color_t fillColor, float alpha = 0.25,
Color_t lineColor = kBlack, int lineWidth = 2,
bool smooth = true, int nsamples = -1)
{
const int n = (int)x.size();
if (n < 2) return;
// Sort by increasing y (Z) so we build monotone x=f(y)
std::vector<int> idx(n); std::iota(idx.begin(), idx.end(), 0);
std::sort(idx.begin(), idx.end(), [&](int a, int b){ return y[a] < y[b]; });
std::vector<double> yS(n), xHi(n), xLo(n);
for (int i=0;i<n;++i) {
const int k = idx[i];
yS[i] = y[k];
xHi[i] = x[k] + ex[k];
xLo[i] = x[k] - ex[k];
}
std::vector<double> xp, yp; // polygon
if (!smooth) {
// ------------------------ STEP (STAIR) ENVELOPE ------------------------
// Build "stair" polylines for upper and lower borders.
// Algorithm (for x=f(y)):
// points: (x0,y0), then for each i=0..n-2:
// (x_i, y_{i+1}) // vertical segment at x_i
// (x_{i+1},y_{i+1}) // horizontal segment to new x
auto build_stairs = [](const std::vector<double>& yv,
const std::vector<double>& xv,
std::vector<double>& outX,
std::vector<double>& outY)
{
const int m = (int)xv.size();
outX.clear(); outY.clear();
outX.reserve(2*m); outY.reserve(2*m);
outX.push_back(xv[0]); outY.push_back(yv[0]);
for (int i=0;i<m-1;++i) {
outX.push_back(xv[i]); outY.push_back(yv[i+1]); // vertical
outX.push_back(xv[i+1]); outY.push_back(yv[i+1]); // horizontal
}
};
std::vector<double> xU, yU, xL, yL;
build_stairs(yS, xHi, xU, yU);
build_stairs(yS, xLo, xL, yL);
// Build filled polygon: upper (forward) + lower (reverse)
xp.reserve(xU.size() + xL.size());
yp.reserve(yU.size() + yL.size());
for (size_t i=0;i<xU.size();++i) { xp.push_back(xU[i]); yp.push_back(yU[i]); }
for (int i=(int)xL.size()-1;i>=0;--i) { xp.push_back(xL[i]); yp.push_back(yL[i]); }
// Draw fill
auto* poly = new TPolyLine((int)xp.size(), xp.data(), yp.data());
poly->SetFillColorAlpha(fillColor, alpha);
poly->SetLineColor(lineColor);
poly->SetLineWidth(lineWidth);
poly->Draw("f");
// Draw borders as step polylines
auto* grHi = new TGraph((int)xU.size());
auto* grLo = new TGraph((int)xL.size());
for (int i=0;i<(int)xU.size();++i) grHi->SetPoint(i, xU[i], yU[i]);
for (int i=0;i<(int)xL.size();++i) grLo->SetPoint(i, xL[i], yL[i]);
grHi->SetLineColor(lineColor); grHi->SetLineWidth(lineWidth); grHi->Draw("L");
grLo->SetLineColor(lineColor); grLo->SetLineWidth(lineWidth); grLo->Draw("L");
} else {
// --------------------------- SMOOTH ENVELOPE ---------------------------
TSpline3 sHi("sHi", yS.data(), xHi.data(), n);
TSpline3 sLo("sLo", yS.data(), xLo.data(), n);
const int m = (nsamples>1) ? nsamples : std::max(100, 4*n);
const double yMin = yS.front(), yMax = yS.back();
xp.reserve(2*m); yp.reserve(2*m);
for (int i=0;i<m;++i) {
const double yy = yMin + (yMax - yMin) * (double(i)/double(m-1));
xp.push_back(sHi.Eval(yy));
yp.push_back(yy);
}
for (int i=m-1;i>=0;--i) {
const double yy = yMin + (yMax - yMin) * (double(i)/double(m-1));
xp.push_back(sLo.Eval(yy));
yp.push_back(yy);
}
auto* poly = new TPolyLine((int)xp.size(), xp.data(), yp.data());
poly->SetFillColorAlpha(fillColor, alpha);
poly->SetLineColor(lineColor);
poly->SetLineWidth(lineWidth);
poly->Draw("f");
auto* grHi = new TGraph(m);
auto* grLo = new TGraph(m);
for (int i=0;i<m;++i) {
grHi->SetPoint(i, xp[i], yp[i]);
grLo->SetPoint(i, xp[2*m-1-i], yp[2*m-1-i]);
}
grHi->SetLineColor(lineColor); grHi->SetLineWidth(lineWidth); grHi->Draw("L");
grLo->SetLineColor(lineColor); grLo->SetLineWidth(lineWidth); grLo->Draw("L");
}
}
static void BuildEnvelopeCenterHalfwidth(
const std::vector<tkn_drip_point>& pts,
double minHalfBin, // 0.5 for unit bins; 1.0 for even-even
std::vector<double>& xNmid, // OUT: Nmid
std::vector<double>& yZ, // OUT: Z
std::vector<double>& exHalfWidth // OUT: half-width on N
){
std::map<int, std::pair<int,int>> z2mm; // Z -> (Nmin,Nmax)
for (const auto& p : pts) {
auto& mm = z2mm[p.Z];
if (mm.first==0 && mm.second==0) mm = {p.N,p.N};
mm.first = (mm.first==0 ? p.N : std::min(mm.first, p.N));
mm.second = (mm.second==0 ? p.N : std::max(mm.second, p.N));
}
xNmid.clear(); yZ.clear(); exHalfWidth.clear();
xNmid.reserve(z2mm.size()); yZ.reserve(z2mm.size()); exHalfWidth.reserve(z2mm.size());
for (const auto& [Z, mm] : z2mm) {
const double Nmid = 0.5*(mm.first + mm.second);
double halfW = 0.5*(mm.second - mm.first);
if (halfW < minHalfBin) halfW = minHalfBin; // keep visible for single N
xNmid.push_back(Nmid);
yZ.push_back((double)Z);
exHalfWidth.push_back(halfW);
}
}
static TGraph* MakeDripLineFromPoints(const std::vector<tkn_drip_point>& pts,
Color_t color, Style_t lineStyle = 1, Width_t lineWidth = 3,
Style_t markerStyle = 20, Size_t markerSize = 0)
{
if (pts.empty()) return nullptr;
std::vector<tkn_drip_point> v = pts;
std::sort(v.begin(), v.end(), [](auto& a, auto& b){ return (a.Z<b.Z)||(a.Z==b.Z && a.N<b.N); });
std::vector<double> xs, ys; xs.reserve(v.size()); ys.reserve(v.size());
for (const auto& p : v) { xs.push_back(p.N); ys.push_back(p.Z); }
auto* gr = new TGraph((int)xs.size(), xs.data(), ys.data());
gr->SetLineColor(color); gr->SetLineStyle(lineStyle); gr->SetLineWidth(lineWidth);
gr->SetMarkerStyle(markerStyle); if (markerSize>0) gr->SetMarkerSize(markerSize);
gr->SetMarkerColor(color);
return gr;
}
void DrawDripLinesIfAvailable(EvenEven mode)
{
const double minHalfBin = (mode==EvenEven::No) ? 0.5 : 1.0;
// All values (for envelopes)
auto s2n_all = gmanager->get_drip_line("S2n", false);
auto s2p_all = gmanager->get_drip_line("S2p", false);
// Build & draw smooth envelopes
std::vector<double> xNmid, yZ, exHalf;
if (!s2n_all.empty()) {
BuildEnvelopeCenterHalfwidth(s2n_all, minHalfBin, xNmid, yZ, exHalf);
DrawSmoothBandX(xNmid, yZ, exHalf,
/*fillColor=*/kAzure+1, 0.25,
/*lineColor=*/kAzure+2, 2,
/*smooth=*/true);
}
if (!s2p_all.empty()) {
BuildEnvelopeCenterHalfwidth(s2p_all, minHalfBin, xNmid, yZ, exHalf);
DrawSmoothBandX(xNmid, yZ, exHalf,
/*fillColor=*/kRed-7, 0.25,
/*lineColor=*/kRed+1, 2,
/*smooth=*/true);
}
// Optional center lines (min |Q|) if desired:
// auto s2n_min = gmanager->get_drip_line("S2n", true);
// if (auto* gS2n = MakeDripLineFromPoints(s2n_min, kAzure+2, 1, (mode==EvenEven::No)?4:3)) gS2n->Draw("L");
// auto s2p_min = gmanager->get_drip_line("S2p", true);
// if (auto* gS2p = MakeDripLineFromPoints(s2p_min, kRed+1, 1, (mode==EvenEven::No)?4:3)) gS2p->Draw("L");
// Simple legend
TLatex lab; lab.SetTextFont(42); lab.SetTextSize(0.04); lab.SetTextAlign(13);
lab.SetTextColor(kAzure+2);
lab.DrawLatexNDC(gPad->GetLeftMargin()+0.010, 0.90, "S_{2n} drip line");
lab.SetTextColor(kRed+1);
lab.DrawLatexNDC(gPad->GetLeftMargin()+0.010, 0.86, "S_{2p} drip line");
}
static void DrawStableNucleiBoxes(EvenEven mode,
Color_t color = kGray+2,
double alpha = 1.0,
Width_t lineWidth = 2,
double inset = 0.08,
bool fill = false)
{
const double halfBin = (mode == EvenEven::Yes) ? 1.0 : 0.5;
glog.set_warnings(false);
for (const auto& nuc : gmanager->get_nuclei()) {
const int Z = nuc->get_z();
const int N = nuc->get_n();
if (mode == EvenEven::Yes && ((N % 2) || (Z % 2))) continue;
if (!nuc->is_stable()) continue;
const double x1 = N - halfBin + inset;
const double x2 = N + halfBin - inset;
const double y1 = Z - halfBin + inset;
const double y2 = Z + halfBin - inset;
auto* box = new TBox(x1, y1, x2, y2);
box->SetLineColorAlpha(color, alpha);
box->SetLineWidth(lineWidth);
if (fill) {
box->SetFillStyle(1001);
box->SetFillColorAlpha(color, alpha);
} else {
box->SetFillStyle(0); // hollow
}
box->Draw("same");
}
}
} // namespace
// ============================= PLOT 1: B(E2)/A ================================
void plot_nuclear_chart_deformation()
{
EvenEven mode = EvenEven::Yes;
const ChartWindow W{18,130, 18,85};
const int NMax=180, ZMax=120;
TH2D* h = MakeHist("NucChart_BE2", NMax, ZMax, mode);
// --- Fill (even-even filter only if mode == Yes)
glog.set_warnings(false);
for (const auto &nuc : gmanager->get_nuclei([](auto nuc) {
return (nuc->get_z()%2==0 && nuc->get_n()%2==0);
}))
{
auto lev_scheme = nuc->get_level_scheme();
auto gamma = lev_scheme->get_decay<tkgammadecay>("2+1->0+1",false);
if(!gamma) continue;
auto BE2W = gamma->get_trans_prob(true,2,true);
if(BE2W<=0||std::isnan(BE2W)) continue;
h->Fill(nuc->get_n(), nuc->get_z(), BE2W / ((float)nuc->get_a()));
}
HideEmptyBins(h);
// Canvas + style + draw
auto* c = new TCanvas("c_be2","",1000,600);
c->SetMargin(0.06, 0.09, 0.08, 0.04);
ApplyCleanStyle(h, W, /*zmin*/0.0, /*zmax*/2.0);
h->Draw("COLZ");
DrawDripLinesIfAvailable(EvenEven::Yes);
DrawStableNucleiBoxes(/*mode=*/EvenEven::Yes, /*color=*/kGray+1, /*alpha=*/1.0,
/*lineWidth=*/1, /*inset=*/0.20);
PlacePalette(h, 0.92, 0.96, c->GetBottomMargin(), 1-c->GetTopMargin());
DrawMagicGridAndLabels(mode);
DrawAxisHints();
DrawTitleTopLeft("B(E2)/A (W.u.)");
tkn::DrawLogoAndCredit(0.8,0.08,0.1,0.027,"Generated with","NDC");
gPad->Modified(); gPad->Update();
c->SaveAs("nuclear_chart_deformation.png");
}
// ============ PLOT 2: Double differential of mass excess Δm ===================
void plot_nuclear_chart_double_mass_diff()
{
EvenEven mode = EvenEven::No;
const ChartWindow W{18,130, 18,85};
const int NMax=180, ZMax=120;
TH2D* h = MakeHist("NucChart_DD", NMax, ZMax, mode);
glog.set_warnings(false);
const int dn=2, dz=2;
for (const auto &nuc : gmanager->get_nuclei()) {
tknucleus n1(nuc->get_z()-dz, nuc->get_a()-dn-dz);
tknucleus n2(nuc->get_z()+dz, nuc->get_a()+dn+dz);
if (!n1.is_known() || !n2.is_known()) continue;
const double me = nuc->get_mass_excess(tkunit_manager::MeV);
const double me1 = n1.get_mass_excess(tkunit_manager::MeV);
const double me2 = n2.get_mass_excess(tkunit_manager::MeV);
if (std::isnan(me) || std::isnan(me1) || std::isnan(me2)) continue;
const double dd = (me1 - 2.0*me + me2) / (2.0*std::sqrt(dn*dn + dz*dz));
h->SetBinContent(h->FindBin(nuc->get_n(), nuc->get_z()), dd);
}
HideEmptyBins(h);
auto* c = new TCanvas("c_dd","",1000,600);
c->SetMargin(0.06, 0.09, 0.08, 0.04);
ApplyCleanStyle(h, W, /*zmin*/-1.0, /*zmax*/2.5);
h->Draw("COLZ");
DrawDripLinesIfAvailable(EvenEven::Yes);
DrawStableNucleiBoxes(/*mode=*/EvenEven::No, /*color=*/kBlack, /*alpha=*/0.6,
/*lineWidth=*/1, /*inset=*/0.0, /*fill=*/true);
PlacePalette(h, 0.92, 0.96, c->GetBottomMargin(), 1-c->GetTopMargin());
DrawMagicGridAndLabels(mode);
DrawAxisHints();
DrawTitleTopLeft("Double differential of the mass excess");
tkn::DrawLogoAndCredit(0.8,0.08,0.1,0.027,"Generated with","NDC");
gPad->Modified(); gPad->Update();
c->SaveAs("nuclear_chart_double_mass_diff.png");
}
tkn::tkgammadecay
Stores information on a gamma-ray decay.
Definition tkdecay.h:131
tkn::tkgammadecay::get_trans_prob
double get_trans_prob(bool _elec, int _L, bool _WU)
returns the gamma gamma transition probability value (ex: BE2 in Weiksopf units, get_trans_prob(1,...
Definition tkdecay.cpp:366
tkn::tknucleus
A nucleus made of Z protons and N neutrons.
Definition tknucleus.h:54
tkn::tkunit_manager::MeV
@ MeV
Definition tkunit.h:70
tkn
Definition tklog.cpp:39
tkn::DrawLogoAndCredit
void DrawLogoAndCredit(double x1, double y1, double width, double text_size, const char *creditTxt, const char *opt)
Definition tkn_root_macros.cpp:27
MagicLayout::ZmMax
static constexpr double ZmMax[7]
Definition nuclear_chart.C:42
MagicLayout::Nm
static constexpr int Nm[7]
Definition nuclear_chart.C:38
MagicLayout::NmMax
static constexpr double NmMax[7]
Definition nuclear_chart.C:40
MagicLayout::ZmMin
static constexpr double ZmMin[7]
Definition nuclear_chart.C:41
MagicLayout::NmMin
static constexpr double NmMin[7]
Definition nuclear_chart.C:39
